Portable High Tonnage Jacks
Portable High Tonnage Jacks
Hydraulic Press Capacity: 30 to 200 Ton | Stroke Range: 200-680 mm | Max Working Pressure: 700 Bar
Features / Application :

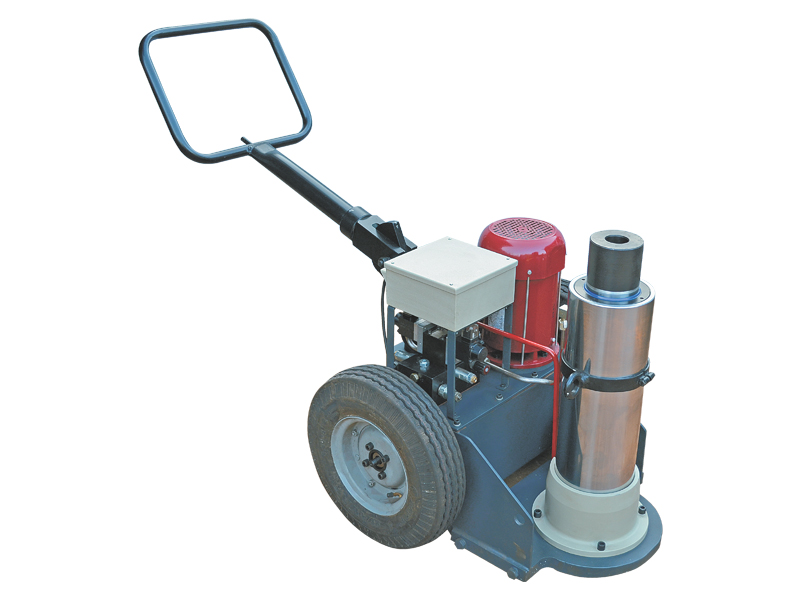

- Compact & Portable Design: Built with high-strength steel alloy for durability and easy transport.
- Optional Power Sources: Available with electric or pneumatic motor options for enhanced efficiency.
- Optional Power Sources: Available with electric or pneumatic motor options for enhanced efficiency.
- Flexible Control Options: Choose between manual control or remote pendant valve operation.
- Ideal for Heavy Equipment Maintenance:

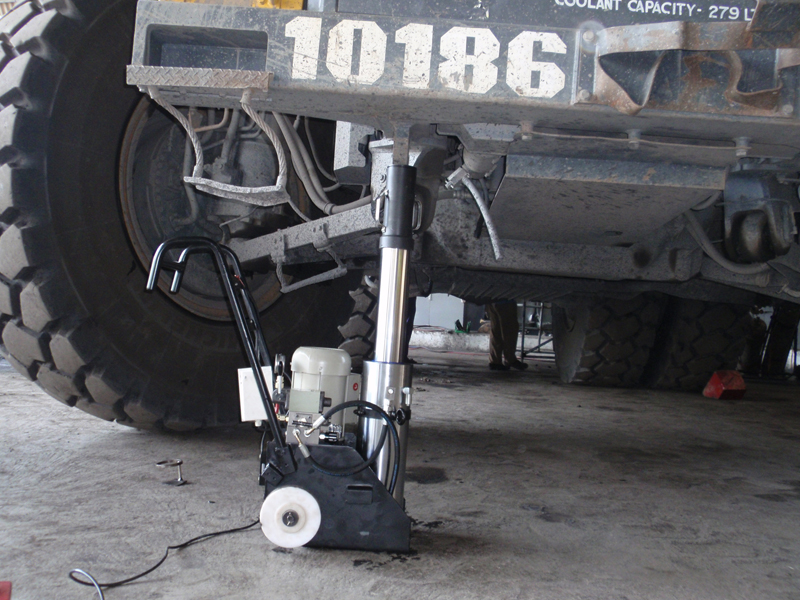

- Perfect for on-site or dumper workshop use—suitable for removal and fitment of front and rear wheels, brake overhauls, final drive repairs, and other maintenance tasks on heavy mining vehicles.
| Capacity (ton) |
Stroke (mm) |
Model | Motor | Weight (kg) |
Stacking pads and Rings (mm) |
Bridge Extension 190 mm |
Bridge Extension 490 mm |
|---|---|---|---|---|---|---|---|
| 30 | 200 | OPJE 30-200 | Electric | 110.6 | - | - | - |
| 60 | 350 | OPJA 60-350 | Air | 177.3 | 1145 | 750 | 1050 |
| 60 | 680 | OPJA 60-680 | Air | 272.7 | 1475 | 1080 | 1380 |
| 60 | 350 | OPJE 60-350 | Electric | 177.3 | 1145 | 750 | 1050 |
| 60 | 680 | OPJE 60-680 | Electric | 272.7 | 1475 | 1080 | 1380 |
| 100 | 400 | OPJA 100-400 | Air | 231.8 | 1007 | 790 | 1090 |
| 100 | 680 | OPJA 100-680 | Air | 272.7 | 1307 | 1090 | 1390 |
| 100 | 400 | OPJE 100-400 | Electric | 231.8 | 1007 | 790 | 1090 |
| 100 | 680 | OPJE 100-680 | Electric | 272.7 | 1307 | 1090 | 1390 |
| 150 | 400 | OPJA 150-400 | Air | 259.1 | 1017 | 800 | 1100 |
| 150 | 680 | OPJA 150-680 | Air | 321.8 | 1312 | 1095 | 1395 |
| 150 | 400 | OPJE 150-400 | Electric | 259.7 | 1017 | 800 | 1100 |
| 150 | 680 | OPJE 150-680 | Electric | 321.8 | 1312 | 1095 | 1395 |
| 200 | 400 | OPJA 200-400 | Air | 290.9 | On Request | 825 | 1125 |
| 200 | 680 | OPJA 200-680 | Air | 375 | On Request | 1125 | 1425 |
