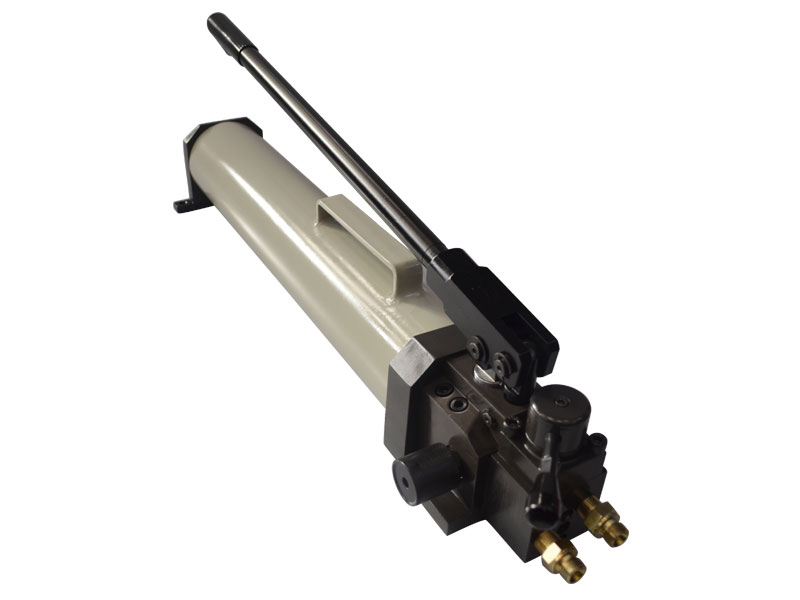

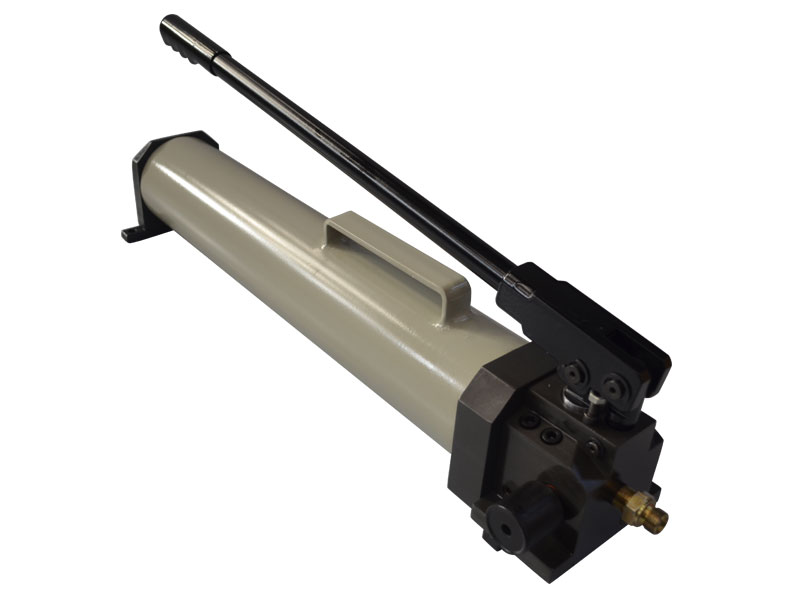

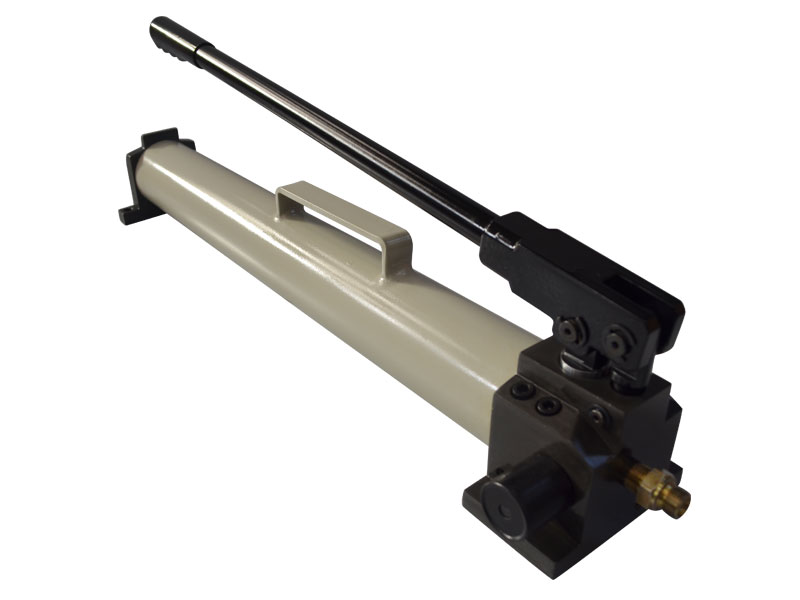

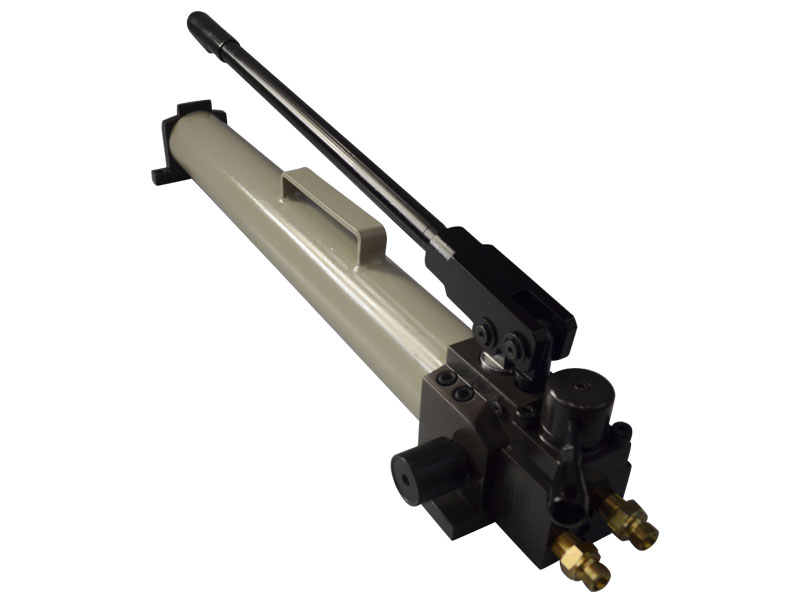

Hydraulic Hand Pumps Aluminium
Hydraulic Hand Pumps Aluminium
Working Pressure 700 - 1600 - 2800 bar
Application :
- Lightweight, High-Strength Aluminium Construction for easy handling and portability
- Precision-Ground & Plated Plungers for enhanced durability and smooth operation
- Factory-Set Built-In Safety Relief Valve for consistent and reliable pressure control
- Durable polyurethane plunger seal for long-lasting performance.
- Single-Stage Hydraulic Pumps - Designed for compact, low-capacity jack applications
- Two-Stage Hydraulic Pumps – Fast load engagement and efficient hydraulic flow
- Compatible with All Leading Hydraulic Jack Brands
- Available Working Pressures: 350 bar and 1000 bar
| Pump Stage | Model | Pressure 1st stage (kg/cm2) |
Pressure 2nd stage (kg/cm2) |
Flow / stroke 1st stage (cc) |
Flow / stroke 2nd stage (cc) |
Filling Capacity (ltrs.) |
Usable Oil (ltrs.) |
Handle Effort (kg) |
Dry Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| Two | OHPA-3P4-2-1.5 | 40 | 700 | 15 | 2.8 | 1.5 | 1 | 40 | 4 |
| Two | OHPA-3P4-2-2 | 40 | 700 | 15 | 2.8 | 2 | 1.5 | 40 | 4.5 |
| Two | OHPA-3P4-2-3 | 40 | 700 | 15 | 2.8 | 3 | 1.9 | 40 | 5.3 |
| Two | OHPA-3P4-2-4 | 40 | 700 | 15 | 2.8 | 4 | 2.9 | 40 | 6.3 |
| Pump Stage | Model | Pressure 1st stage (kg/cm2) |
Pressure 2nd stage (kg/cm2) |
Flow / stroke 1st stage (cc) |
Flow / stroke 2nd stage (cc) |
Filling Capacity (ltrs.) |
Usable Oil (ltrs.) |
Handle Effort (kg) |
Dry Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| Two | OHPA-3P2-6-1.5 | 40 | 1600 | 15 | 1.2 | 1.5 | 1 | 40 | 4 |
| Two | OHPA-3P2-6-2 | 40 | 1600 | 15 | 1.2 | 2 | 1.5 | 40 | 4.5 |
| Pump Stage | Model | Pressure 1st stage (kg/cm2) |
Pressure 2nd stage (kg/cm2) |
Flow / stroke 1st stage (cc) |
Flow / stroke 2nd stage (cc) |
Filling Capacity (ltrs.) |
Usable Oil (ltrs.) |
Handle Effort (kg) |
Dry Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| Two | OHPA-3P6-7-1.5 | 40 | 2800 | 15 | 0.7 | 1.5 | 1 | 40 | 4 |
| Two | OHPA-3P6-7-2 | 40 | 2800 | 15 | 0.7 | 2 | 1.5 | 40 | 4.5 |
